GO Fill|TA3A.PR.K3

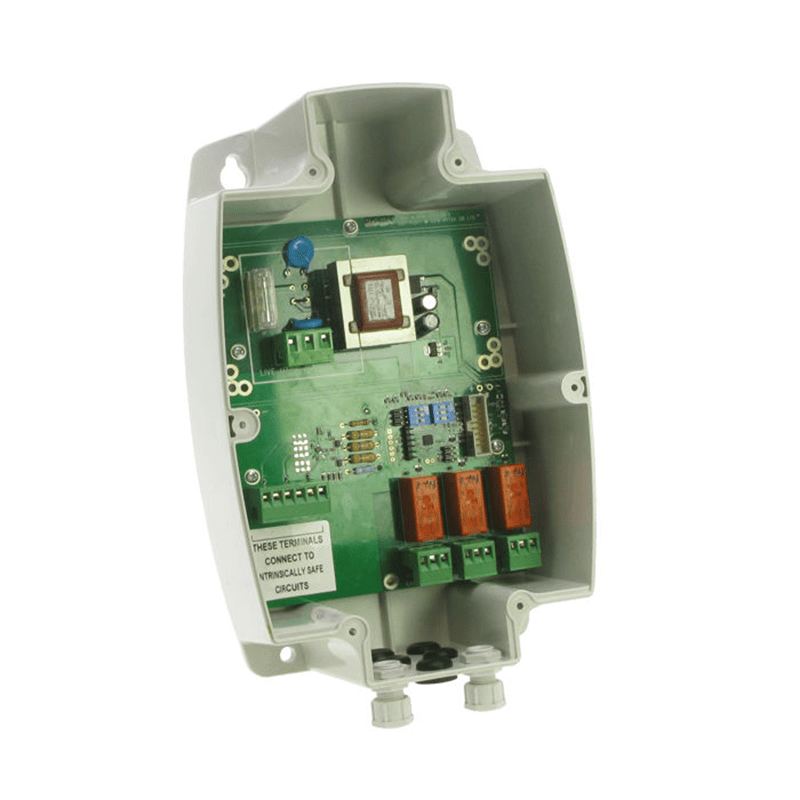

Tank Alarm 240V 3 x Relays, 3 x Float Switches, Xenon Flashing Light, Audible Alarm TA3A.PR.K3
Tax excluded. Shipping calculated at checkout
GST (10%) is calculated at checkout. Tax invoices provided with all orders.
Contact for live availability
Our inventory signal hasn't refreshed today. We update twice daily but the latest reading is stale.
Email sales@goind.com.au or call 07 3204 2240 for live availability.
Ships from Brisbane warehouse. Standard delivery 2-5 business days Australia-wide.
THREE-LEVEL MONITORING WITH ATEX COMPLIANCE FOR HAZARDOUS SITES
Three-level tank alarm system with ATEX-certified float switches, audible and visual alerts, and relay outputs for remote monitoring. Suits diesel, oil, and AdBlue tanks.
Know your levels
Three independent float switches give you low, mid, and full monitoring. Each level closes a relay output so your SCADA or remote monitoring sees exactly what is happening in the tank. The audible alarm and xenon flash mean staff on site know immediately when a threshold is hit.
Certified for classified areas
ATEX certification is not optional if your tank sits in a hazardous zone. This system is certified for use in those areas, so you meet compliance without hunting for workarounds. Stainless steel and brass construction handles diesel, oil, and AdBlue without compatibility issues.
Features & Benefits
Key Features
- 3 channel alarm designed to detect overfill, low level/reorder level or bund alarm situations in 1, 2 or 3 tanks. Connect up to 3 float switches.
- 230V, weatherproof alarm box, xenon beacon & individual channel LED’s.
- High powered alarm sounder 90dB at 1m.
- Order the float switches separately.
- Universal float switches, can be used for high, bund or low level/reorder, just configure the dip switches inside the alarm box to activate the level alarm required.
- Choose Diesel, Petrol or AdBlue®/water float switches.
- Relay outputs can be used to switch secondary equipment & sounders like our remote warning device (RWD2).
- Offers external outputs 1 per channel, they are a switch only & not a power source, not to be used to activate fuel pumps or safety valves.
- Output relay contacts rated at 250V, 5amps/100VA max.
- Volt free contacts for each channel.
| Relay Outputs | 3 x relays for remote signal integration |
| Voltage | 230V |
| Weight | 10 kg |
| Material | Stainless Steel |
| Certifications | ATEX |
| Float Switches | 3 independent units for multi-level monitoring |
| Alarm | audible sounder and xenon flashing light |
| Materials | stainless steel and brass wetted parts |
| Fluid Compatibility | diesel, oil, AdBlue |
Shipping & Dimensions
Ships from Brisbane warehouse. Standard delivery 2-5 business days.
Downloads
Compare
Compare Similar Products
3 x relays for remote signal integration
—
—
230V
24V
—
10 kg
10 kg
10
Stainless Steel
—
—
ATEX
—
—
3 independent units for multi-level monitoring
—
—
audible sounder and xenon flashing light
—
—
stainless steel and brass wetted parts
—
—
diesel, oil, AdBlue
—
—
Compatible Products
Frequently Asked Questions
Can't find your answer?
Contact UsWhat is the GO Fill Tank Alarm 240V 3 x Relays?
A three-level tank monitoring system with float switches, relay outputs, and audible plus visual alarms. ATEX-certified for hazardous area installations on diesel, oil, or AdBlue tanks.
What do the three float switches monitor?
Each float switch detects a discrete tank level (typically low, mid, full). When a level is reached, the corresponding relay closes and the alarm activates.
Can I integrate the relays with my site control system?
Yes. Each relay provides a dry contact output suitable for SCADA, PLC, or building management systems. Wire to your remote monitoring as you would any alarm contact.
Is ATEX certification required for my site?
If your tank is in a classified hazardous area (Zone 1 or Zone 2), ATEX certification is legally required in Australia. This unit meets that standard.
What is covered under warranty and how do I get support?
12-month warranty on electrical components and housing. Float switches are consumables. For installation support or replacement parts, contact sales@goind.com.au or 07 3204 2240.
