Fill-Rite|FR112CL
FILL-RITE FR112CL Rotary Hand Pump with Litre Counter and Nozzle Spout
Tax excluded. Shipping calculated at checkout
GST (10%) is calculated at checkout. Tax invoices provided with all orders.
Contact for live availability
Our inventory signal hasn't refreshed today. We update twice daily but the latest reading is stale.
Email sales@goind.com.au or call 07 3204 2240 for live availability.
Ships from Brisbane warehouse. Standard delivery 2-5 business days Australia-wide.
HAND-CRANKED DRUM TRANSFER WITH LITRE COUNTER

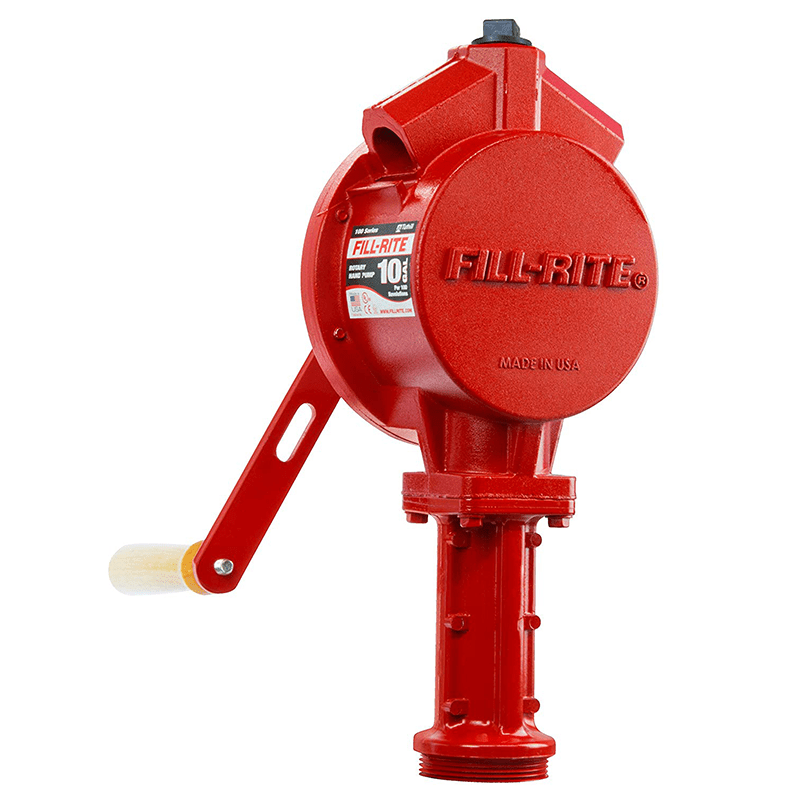

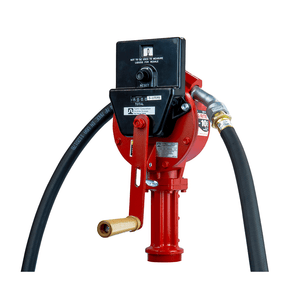

Fill-Rite FR112CL rotary hand pump with built-in litre counter. 2-inch NPT bung mount, 38 L per 100 revolutions, telescoping suction pipe and 2.4 m hose included. Cast aluminium body, UL listed, 2-year warranty - the dependable backup for diesel, petrol, and kerosene drum transfer.

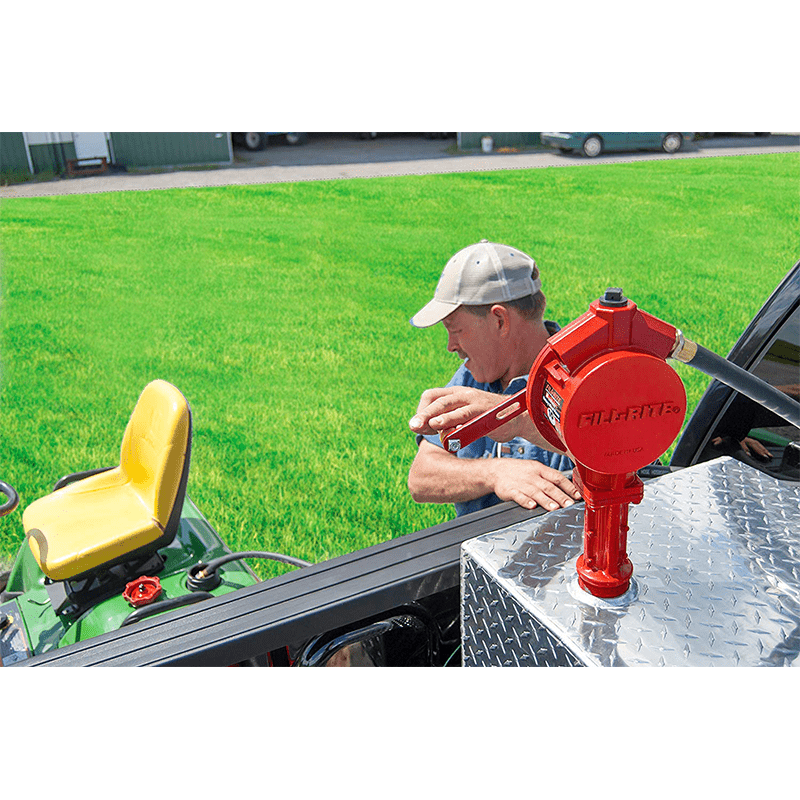

When the bowser is offline, this is the backup
Site work has a habit of dropping power right when you need to refuel. The FR112CL drops onto a 2-inch drum bung and hand-cranks 38 litres per 100 revolutions through a 2.4 m hose - no electricity, no battery, no excuses. The reversible rotation also lets you draw fuel back if you over-fill, which sounds minor until the day you need it.
Cast aluminium body, cast iron rotor, US-made
Fill-Rite has been making rotary hand pumps for decades. Cast aluminium keeps the FR112CL light enough to move drum to drum, and the cast iron rotor handles thousands of cycles without slipping. UL listing and 2-year warranty mean it is rated for compliance-sensitive jobs (mining, transport depots, fleet workshops) - not just farm-shed duty.
Features & Benefits
Key Features
- 38 L per 100 revolutions hand-cranked pumping rate
- Built-in litre counter for usage tracking - no external meter
- 2-inch NPT bung mount fits drums and IBCs straight off the shelf
- Telescoping 500-870 mm suction pipe handles 200L drums and tall IBCs
- 5/8 inch x 2.4 m UL listed hose with static ground wire
- 3/4 inch cast aluminium nozzle spout
- Cast aluminium body with cast iron rotor
- Reversible rotation - draw fuel back if you over-fill
- Built-in check valve and strainer keep contamination out
- Padlock-compatible, UL listed, 2-year warranty
Benefits
- No power needed - dependable when the bowser is offline or you are off-grid
- Litre counter saves rigging a separate meter for usage logging
- Telescoping pipe means one pump for drums and IBCs
- Cast aluminium body is corrosion resistant and light enough to move solo
- Made in USA, 2-year warranty - sized for site duty, not weekend hobby use
| Pumping Rate | 38 L per 100 revolutions (10 US gpm) |
| Operation | Hand-cranked, reversible rotation |
| Duty Cycle | Continuous |
| Tank Mount | 2 inch NPT bung mount |
| Inlet | 1 inch NPT female |
| Outlet | 3/4 inch NPT female |
| Suction Pipe | Telescoping steel, 500 to 870 mm |
| Hose | 5/8 inch x 2.4 m (8 ft) UL listed, static ground wire |
| Nozzle Spout | 3/4 inch cast aluminium |
| Body Material | Cast aluminium |
| Rotor Material | Cast iron |
| Built-in Strainer | Yes |
| Built-in Check Valve | Yes |
| Padlock Compatible | Yes |
| Length | 393 mm (15.5 in) |
| Width | 163 mm (6.4 in) |
| Height | 241 mm (9.5 in) |
| Weight (assembled) | 4.9 kg (10.8 lb) |
| Shipping Weight | 10 kg |
| Fluid Compatibility | Petrol, Diesel, Biodiesel B20, E15, Kerosene, Mineral Spirits, Heptane, Stoddard Solvents |
| Counter | Built-in litre counter |
| Certification | UL listed |
| Origin | Made in USA |
| Brand | Fill-Rite |
| Manufacturer Part | FR112CL |
| Warranty | 2 years |
Shipping & Dimensions
Ships from Brisbane warehouse. Standard delivery 2-5 business days.
Downloads
Compare
Compare Similar Products
38 L per 100 revolutions (10 US gpm)
—
Hand-cranked, reversible rotation
—
Continuous
—
2 inch NPT bung mount
—
1 inch NPT female
—
3/4 inch NPT female
—
Telescoping steel, 500 to 870 mm
—
5/8 inch x 2.4 m (8 ft) UL listed, static ground wire
—
3/4 inch cast aluminium
—
Cast aluminium
—
Cast iron
—
Yes
—
Yes
—
Yes
—
393 mm (15.5 in)
—
163 mm (6.4 in)
—
241 mm (9.5 in)
—
4.9 kg (10.8 lb)
—
10 kg
—
Petrol, Diesel, Biodiesel B20, E15, Kerosene, Mineral Spirits, Heptane, Stoddard Solvents
—
Built-in litre counter
—
UL listed
—
Made in USA
—
Fill-Rite
—
FR112CL
—
2 years
—
Compatible Products
Frequently Asked Questions
Can't find your answer?
Contact UsHow fast does the FR112CL pump?
About 38 litres per 100 revolutions (10 US gpm). Real-world rate depends on cranking speed, fuel viscosity, and lift height. Allow roughly 5 minutes to empty a 200L drum at a steady pace.
What does it fit on?
2-inch NPT bung mount fits standard 200L drums and most IBCs. The telescoping suction pipe extends 500 to 870 mm to suit different drum heights.
What fluids can I pump with it?
Petrol, diesel, biodiesel up to B20, E15, kerosene, mineral spirits, heptane, and Stoddard solvents. Not rated for AdBlue, water, or food-grade fluids. Email sales@goind.com.au with your fluid spec for compatibility checks.
Does it have a meter?
Yes - the CL variant includes a built-in mechanical litre counter. The base FR112 model is the same pump without the counter.
Can I lock it on the drum?
Yes. The FR112CL has a padlock-compatible design so you can lock it to the drum when not in use.
Where is it made and what warranty does it carry?
Made in USA by Fill-Rite (Tuthill Corporation). UL listed, 2-year manufacturer warranty.
