Piusi|F1815100A
PIUSI HOSE 3/4" ID x 4m L DN25 (1") BSP Male Diesel / Petrol · F1815100A
Tax excluded. Shipping calculated at checkout
GST (10%) is calculated at checkout. Tax invoices provided with all orders.
Contact for live availability
Our inventory signal hasn't refreshed today. We update twice daily but the latest reading is stale.
Email sales@goind.com.au or call 07 3204 2240 for live availability.
Ships from Brisbane warehouse. Standard delivery 2-5 business days Australia-wide.
GENUINE PIUSI REPLACEMENT DELIVERY HOSE

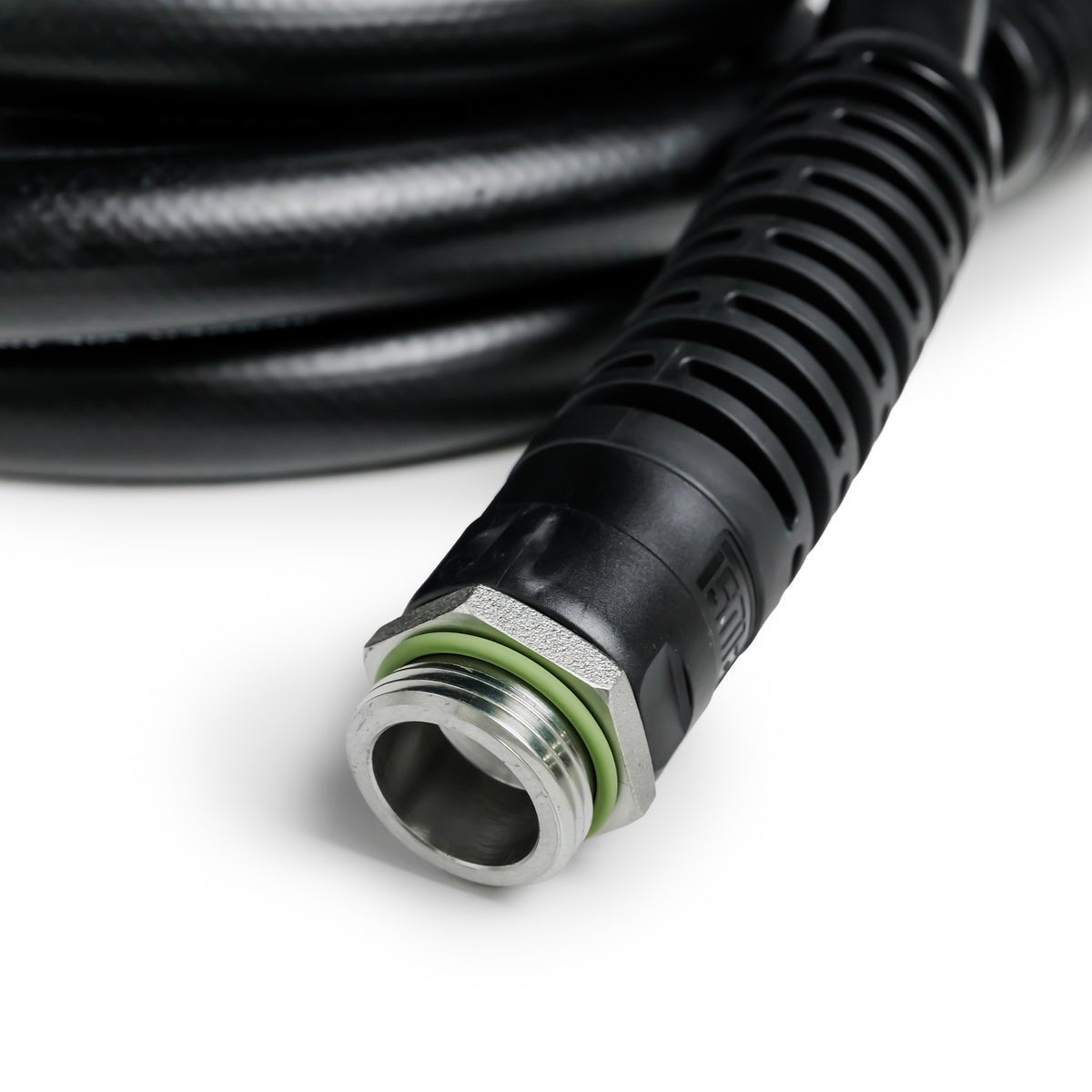

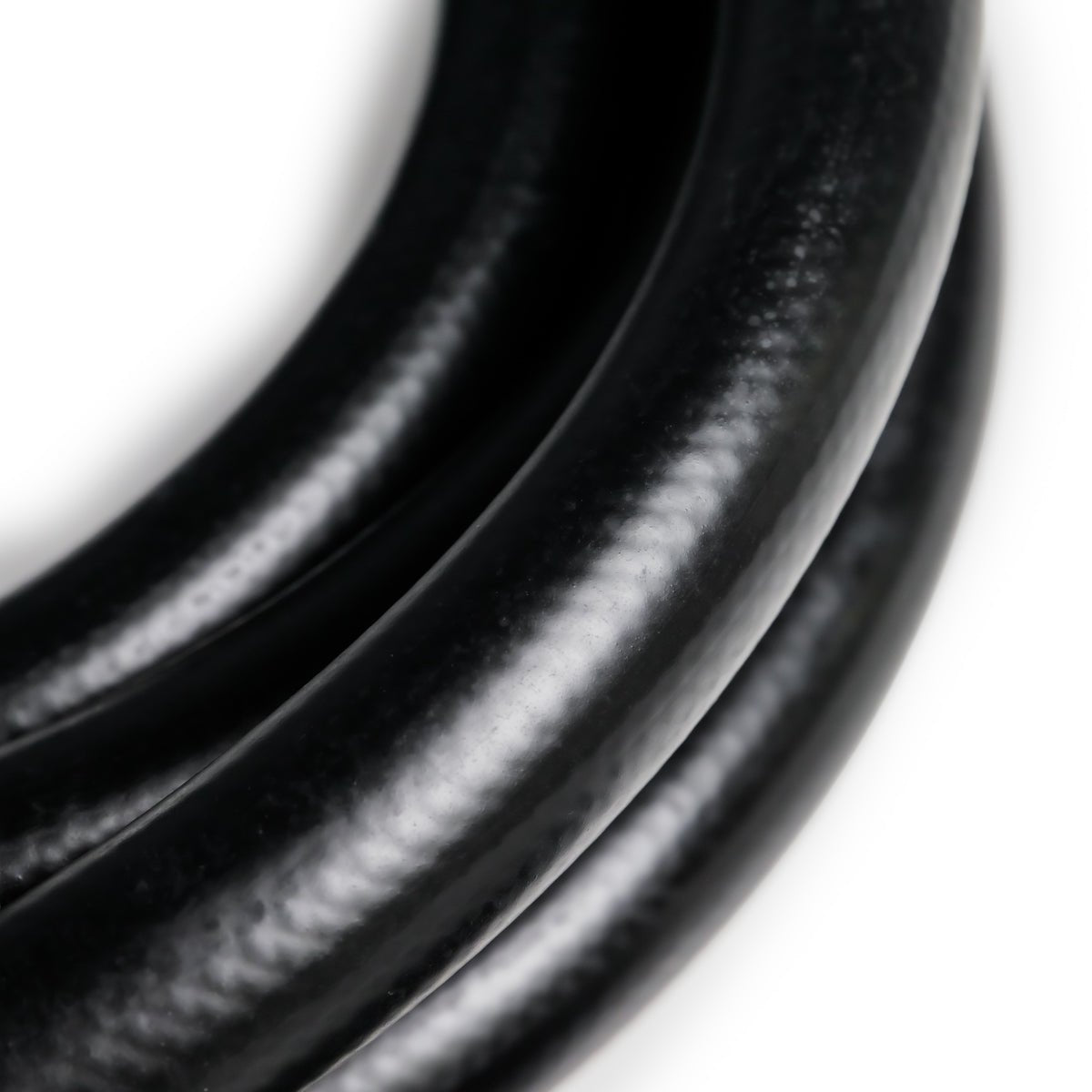

4 m fuel-rated delivery hose with 3/4" ID and 1" BSP male crimped fittings. The same hose we ship on every Piusi Cube and EX50 kit. Diesel and petrol rated.

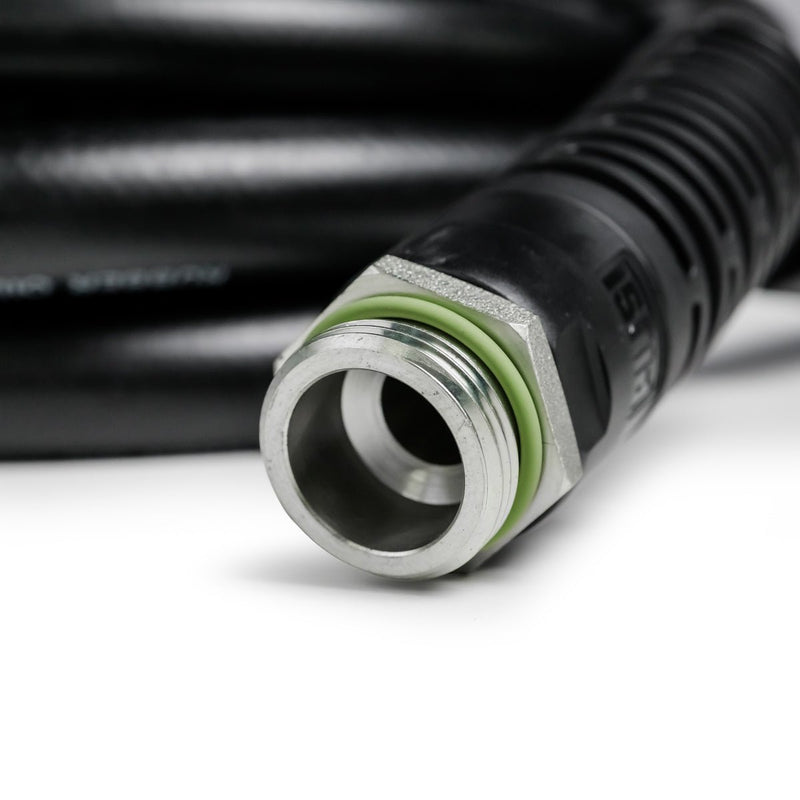

The same hose Piusi ships on every Cube and EX50 kit
Identical spec to the hose that comes pre-fitted on every new Cube 56, Cube 70, Cube 90, EX50 ATEX kit, and ST transfer pump leaving our warehouse. NBR rubber cover with anti-static synthetic textile reinforcement, swaged stainless steel ferrules, 1" BSP male crimped fittings on both ends with O-ring sealing. When you replace, replace with the same OEM-approved part - not a generic substitute.
EQUIPMENT
NBR construction handles up to 50% aromatics
A diesel-only hose hardens, swells, and eventually fails when you put petrol through it - the aromatics attack the rubber. This hose is rated for unleaded petrol up to 50% aromatic content, plus diesel and kerosene. So if your installation handles mixed fuels, or if you're upgrading a diesel-only setup to also run petrol, this is the same hose you can keep using. Anti-static reinforcement bonds both fittings to ground for safe dissipation.
RATED
Features & Benefits
Key Features
- 4 m x 3/4" ID delivery hose with 1" BSP male crimped ends
- NBR rubber cover with anti-static synthetic textile reinforcement
- Diesel and unleaded petrol rated, up to 50% aromatics
- Stainless steel swaged ferrules with O-ring sealed fittings
- Operating range -20 deg C to +80 deg C
- Genuine OEM replacement on Piusi Cube, EX50, ST, and Panther kits
- Drop-in fit on any pump with 1" BSP male outlet
| Length | 4 m |
| Internal Diameter | 3/4" (20 mm) |
| Outer Diameter | 27 mm |
| End Fittings | 1" BSP Male x 2 |
| Connection Style | Crimped, swaged stainless ferrules |
| Cover Material | NBR rubber, anti-static |
| Weight | Approx 1.6 kg |
| Sealing | O-rings on both fittings |
| Country of Origin | Italy |
| Warranty | 12 months |
| Manufacturer Code | F1815100A |
| Reinforcement | Synthetic textile braid |
| Fluid Compatibility | Diesel, unleaded petrol (up to 50% aromatics) |
| Operating Temperature | -20 to +80 deg C |
| Resistance | Weather and ozone |
Shipping & Dimensions
Ships from Brisbane. Coiled in protective wrap, fits standard satchel.
Downloads
Compatible Products
Frequently Asked Questions
Can't find your answer?
Contact UsWill it fit my older Piusi Cube?
Yes. Every Cube 56, Cube 70, and Cube 90 made in the last 10+ years uses 1" BSP male outlet. Wind off the old hose, fit a new O-ring, wind on this one.
Is it OK for petrol or just diesel?
Both. The NBR cover with anti-static reinforcement is rated for unleaded petrol up to 50% aromatics, diesel, and kerosene. For aviation fuels (AVGAS, Jet A) check our aviation hose range.
Is it the same hose Piusi supplies on a new Cube?
Yes - identical OEM specification. Same hose we ship out on every new Cube 56, 70, and 90 leaving the warehouse.
Do I need different fittings for an EX50 kit?
No. The EX50 kit uses the same 1" BSP male connections as the Cube range. F1815100A is the standard replacement across most of the Piusi pump-kit lineup.
What's the maximum working pressure?
The hose is rated for the typical 1.5 to 2.5 bar pump output of Piusi self-priming vane pumps. It's not a high-pressure hose - don't use it on positive-displacement pumps over 5 bar.
Is the hose conductive for static dissipation?
Yes. The synthetic textile reinforcement carries a conductive thread that bonds the two end fittings, allowing static charge to dissipate to the pump frame and grounding circuit.
