BANLAW 800lpm Dry Break Diesel Refuelling Nozzle - Medium Spring · BNM800M
Tax excluded. Shipping calculated at checkout
GST (10%) is calculated at checkout. Tax invoices provided with all orders.
Available to Order
We source this in for you on demand. Order now and we'll secure your unit, or contact us for a firm lead time and freight to your site, warehouse, business or home address.
For a lead time or expedited dispatch, contact sales@goind.com.au or call 07 3204 2240.
Ships from Brisbane warehouse. Standard delivery 2-5 business days Australia-wide.
HIGH-FLOW DIESEL ENGINEERED BY BANLAW

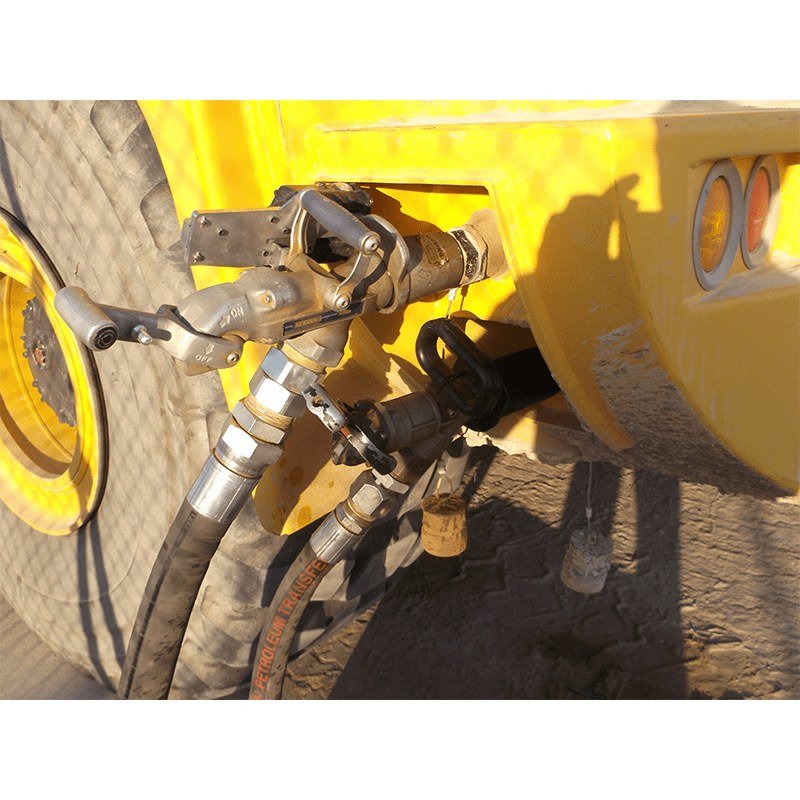

Banlaw BNM800M 800 lpm (211 gpm) dry break diesel refuelling nozzle, Medium spring setting (industry-standard pressure). Automatic shut-off with matched receivers and vents, ball-locking anti fly-off, dry break connection and an all-metal, fully repairable construction. 2" NPT female inlet, supplied with plug.
Built for the highest reliable flow
Banlaw refuelling nozzles offer the highest reliable flow-rate capability with a proven safety record. The BNM800M moves 800 lpm of diesel through a dry break connection that avoids spills and sprays even at full speed, while the ball-locking mechanism ensures the nozzle cannot fly off under pressure. It is the natural choice for high-flow industrial diesel filling.
No fuel wasted, no time lost
Installed with correctly matched Banlaw receivers and tank vents, the BNM800M shuts off automatically when the tank is full. The Medium spring setting is the industry standard - the operator simply connects, fills and the system handles the rest. That makes it equally at home in manual refuelling and robotic / automated refuelling installations.
Features & Benefits
Key Features
- 800 lpm (211 gpm) high-flow diesel refuelling
- Medium spring setting - industry-standard pressure
- Automatic shut-off with matched receivers and vents
- Dependable ball-locking mechanism (anti fly-off)
- Dry break connection avoids spills and sprays at high flow
- All steel mating parts, all-metal fully repairable construction
- 2" NPT female inlet - interchangeable with common dry break receivers
- Supplied with nozzle plug to keep contaminants out
Benefits
- Fast, automated fills with no fuel wasted and no time lost
- Safe high-speed refuelling with no spills or fly-off
- Decades of serviceable life with regular maintenance
- Standardise refuelling across a mixed-brand fleet
- Suitable for manual handling and robotic / automated refuelling
| Flow rate | 800 lpm (211 gpm) |
| Spring setting | Medium (industry-standard pressure) |
| Shut-off | Automatic with matched Banlaw receivers and vents |
| Fluid | Diesel and similar fluids |
| Inlet | 2" NPT female |
| Spanner flat | Hex 70 A/F |
| Receiver | Most commonly encountered dry break receiver size |
| Overall length | 454.6 mm |
| Width | 123.4 mm |
| Height | 189 mm |
| Spout diameter | 72.5 mm |
| Weight | 3.9 kg |
| Body | All-metal, steel mating parts |
| Serviceability | Fully repairable - decades of service with maintenance |
| Safety | Ball-locking mechanism (anti fly-off) |
| Suitability | Robotic / automated refuelling capable |
Shipping & Dimensions
Ships from Brisbane. Standard delivery 2-5 business days. Supplied with nozzle plug.
Downloads
Compare
Compare Similar Products
800 lpm (211 gpm)
—
—
Medium (industry-standard pressure)
—
—
Automatic with matched Banlaw receivers and vents
—
—
Diesel and similar fluids
—
—
2" NPT female
—
—
Hex 70 A/F
—
—
Most commonly encountered dry break receiver size
—
—
454.6 mm
—
—
123.4 mm
—
—
189 mm
—
—
72.5 mm
—
—
3.9 kg
—
5.5 kg
All-metal, steel mating parts
—
—
Fully repairable - decades of service with maintenance
—
—
Ball-locking mechanism (anti fly-off)
—
—
Robotic / automated refuelling capable
—
—
Compatible Products
Frequently Asked Questions
Can't find your answer?
Contact UsWhat does the Medium spring setting mean?
Medium is the industry-standard shut-off pressure and the most commonly used setting. The nozzle senses back pressure from a correctly matched receiver and vent, then shuts off when the tank is full. Light and Heavy settings are available for thin-walled tanks or long remote-fill pipework respectively - talk to GO Industrial if you are unsure which suits your site.
Will the BNM800M fit my existing receivers?
The 800 Series connects to the most commonly encountered dry break receiver size, so it is completely interchangeable with other equipment brands. The inlet is 2" NPT female. For automatic shut-off you need correctly matched Banlaw receivers and tank vents.
Does it come with a plug?
Yes. The nozzle is supplied with a plug that keeps loose soil and contaminants out when a holster or anchor is not being used. Replacement plugs, holsters and anchors are available separately.
What fluids is it suitable for?
Diesel and similar fluids. It is engineered for high-flow industrial diesel refuelling on mine sites, rail, ports, construction, fleets and forestry.
How do I order or get bulk pricing?
For bulk pricing, matched receivers and vents, spring-setting advice or a quote, contact sales@goind.com.au or 07 3204 2240.
