INLINE PRESSURE CONTROL FOR MOBILE AND FIXED FUEL SYSTEMS
DN40 aluminium pressure regulator valve for diesel and fuel transfer systems. Protects pumps and downstream equipment by maintaining safe operating pressure.
Stops burst hoses
Pump pressure spikes happen. Quick stops, blocked filters, kinked lines. Without regulation, that spike travels straight to your hose and fittings. This valve bleeds off excess pressure before it gets there. Aluminium body keeps weight down on trailers and utes.
Workhorse spec, fair price
DN40 suits most 100-150 L/min diesel transfer rigs. Aluminium construction is lighter than cast iron and adequate for daily workshop or site use. Not top-shelf stainless, not trying to be. A solid mid-tier valve that does the job at $1,300.
Features & Benefits
Key Features
- Suitable with diesel or biodiesel up to B30.

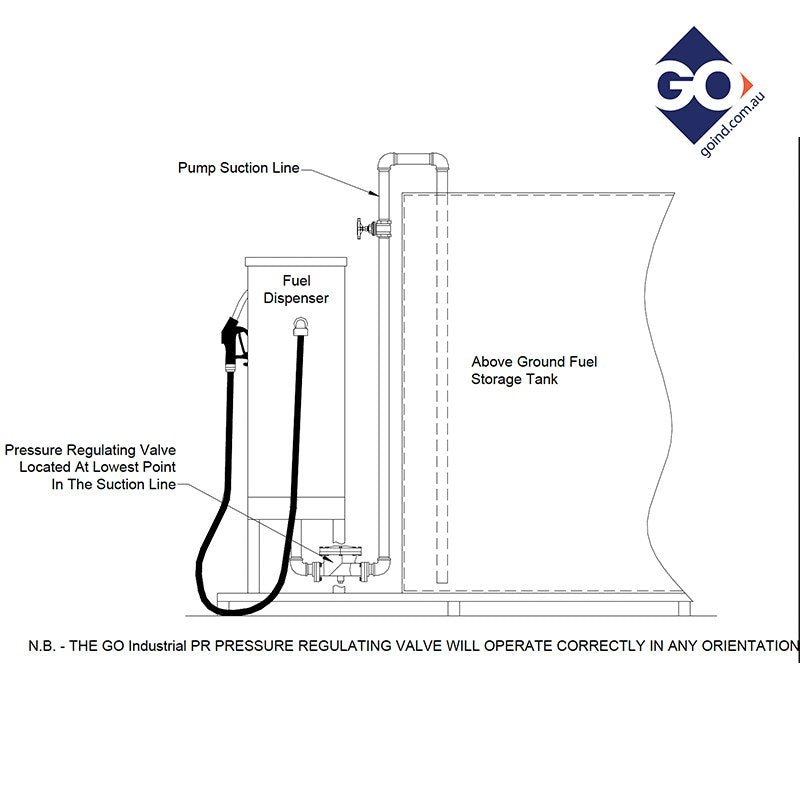

- Protects self bunded above ground storage tanks from syphoning used with Bowsers, mounted to above ground self bunded storage tanks, in custody transfer applications, to prevent weeping through the air eliminator of the bowser
- Inlet strainer mesh.
- High quality die cast aluminium body.
- Max tank height from ground level 7.5m.
- Can be mounted horizontally or vertically.
- A full range of spares available.
| Connection | DN40 (1.5 inch) BSP female |
| Weight | 10 kg |
| Mounting | Inline between pump and dispense point |
| Material | Aluminium |
| Application | Diesel, petrol, fuel oil |
| Function | Maintains safe system pressure |
| Protection | Prevents over-pressure damage to hoses and nozzles |
| Design | Workhorse build for mobile and fixed fuel systems |
Shipping & Dimensions
Ships from Brisbane warehouse. Standard delivery 2-5 business days.
Downloads
Compare
Compare Similar Products
DN40 (1.5 inch) BSP female
—
19mm (3/4 inch) BSP female swivel
10 kg
—
1.05 kg
Inline between pump and dispense point
—
—
Aluminium
—
316 stainless steel body and spout
Diesel, petrol, fuel oil
—
—
Maintains safe system pressure
—
—
Prevents over-pressure damage to hoses and nozzles
—
—
Workhorse build for mobile and fixed fuel systems
—
—
Compatible Products
Frequently Asked Questions
Can't find your answer?
Contact UsWhat is the GO Fill Pressure Regulator Valve DN40?
An inline aluminium valve that limits system pressure in fuel transfer setups. Sits between pump and hose reel to protect hoses, fittings, and dispensing nozzles from over-pressure damage.
What thread size does it use?
DN40 (1.5 inch) BSP female connections on both inlet and outlet. Standard Australian fuel system fitting.
What fuels can it handle?
Diesel, petrol, and fuel oil. Not rated for water, chemicals, or food-grade liquids.
Do I need this if I already have a pump with a bypass valve?
Depends on your setup. A pump bypass protects the pump itself. This valve protects everything downstream: hoses, swivels, meters, nozzles. Belt-and-braces if you run high-flow or long hose runs.
What is covered under warranty and how do I get support?
12-month warranty on the valve body and mechanism. Seals and springs wear with use and are not warranty items. For claims or technical advice, contact sales@goind.com.au or 07 3204 2240.
