Piusi|F0075003B
PIUSI Hose Reel Spring Rewind c/w 25mm id x 10m F0075003B
Tax excluded. Shipping calculated at checkout
GST (10%) is calculated at checkout. Tax invoices provided with all orders.
Contact for live availability
Our inventory signal hasn't refreshed today. We update twice daily but the latest reading is stale.
Email sales@goind.com.au or call 07 3204 2240 for live availability.
Ships from Brisbane warehouse. Standard delivery 2-5 business days Australia-wide.
PREMIUM 25MM HOSE REEL FOR DEPOT AND WORKSHOP DIESEL

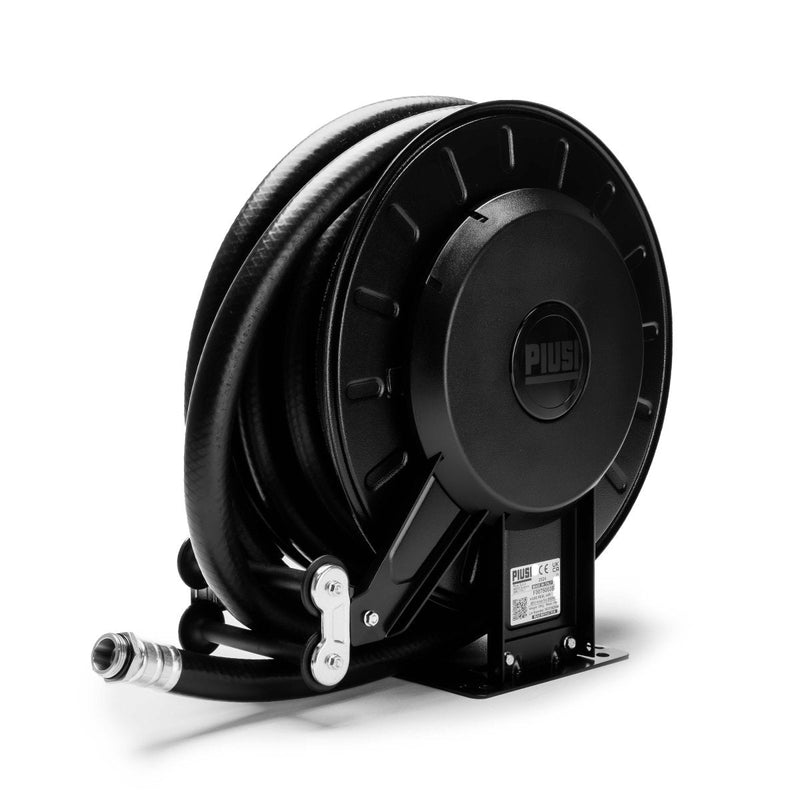

Premium spring-rewind hose reel in cast iron, holds 10 metres of 25mm diesel hose. Built for high-volume workshop and depot use.
Built for volume
Piusi's cast iron reel handles 10 metres of 25mm hose, the step up from light-duty 19mm workshop gear. That extra bore matters when you're running 100+ L/min pumps and filling 200-litre tanks between jobs. Spring rewind keeps the hose off the ground and out of traffic.
Cast iron frame
At 25 kg this isn't a portable unit you toss in the ute. It's depot kit: mount it once, use it daily. Cast iron stands up to forklift nudges, ute reversals, and years of hose pull. The spring mechanism is replaceable when wear eventually catches up.
Features & Benefits
Key Features
- Automatic spring rewind fuel hose reel
- Sturdy steel structure
- Reduced pressure loss through hydraulic sizing
- Protected latch mechanism which prevents injury
- Adjustable arm brackets for easy positioning
- Optional fixed or rotating support plate
| Max Pressure (Bar) | 10 |
| Pressure Loss (Bar) | 0.7 @ 80 lpm |
| Length (m) | 10 |
| Inlet | 1" F BSPP Swivel |
| Outlet | 1" M BSPP |
Shipping & Dimensions
Ships from Brisbane warehouse. Standard delivery 2-5 business days.
Downloads
Compare
Compare Similar Products
10
10
—
0.7 @ 80 lpm
0.8 @ 80 lpm
—
10
15
—
1" F BSPP Swivel
1" F BSPP Swivel
—
1" M BSPP
1" M BSPP
—
Compatible Products
Frequently Asked Questions
Can't find your answer?
Contact UsWhat is the Piusi spring-rewind hose reel?
A cast iron automatic hose reel that holds 10 metres of 25mm ID diesel hose. Spring mechanism retracts the hose after each use, keeping the line tidy and protected.
Is hose included?
No. This reel is sold without hose. Match it with 25mm ID diesel delivery hose from the GO Fill range.
Why 25mm instead of 19mm or 32mm?
25mm suits mid-to-high flow pumps (100-150 L/min typical). Larger bore than standard 19mm workshop reels, smaller than bulk depot 32mm lines.
What's the unit weight?
25 kg. Cast iron frame adds weight but delivers long service life under daily use.
What warranty and support apply?
12-month manufacturer warranty covers defects. Spring and swivel are wear items. For technical advice or bulk orders, contact sales@goind.com.au or 07 3204 2240.
